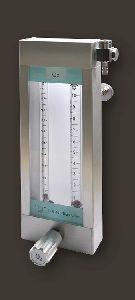

Dual Tube Flowmeter

Dual Tube Flowmeter
Business Type Manufacturer, Exporter, Supplier
Accuracy Compliant to ISO 5358, or ISO 15002, or VDI 3513 (upto G=2.5, lin=50%)
No. of Tubes 1-tube to 6-tubes available as standard
Tube length Borosilicate glass, Standard 230mm. Other sizes on request (See tube catalogue)
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Antistatic
Conductive tubes and bushes for static dissipation
Float
Anodised Aluminum, Red, rotating as standard.
Anti Hypoxia
2-tube to 6-tube versions are also available with Antihypoxia device.
FA valve
Available with Fine adjustment valves for accurate flow control
Gases
Oxygen, Nitrous Oxide, Air, Xenon
Background
Yellow green “Glow in the dark” for easy viewing
Body
Anodised aluminum, or powder coated, as per your choice.
Front
Front cover made from transparent acrylic sheet
Knob
Color and touch coded as per ISO 5358
Download

Anaesthetic Rotameters are used for measuring the rate of flow of gases used for anaesthesia. The gases measured are Oxygen, Nitrous oxide, Carbon dioxide, Xenon, and Air.



Anaesthetic Rotameters units with control valve system can be of 1 tube, 2 tubes, 3 tubes and so on as per user requirement. It comes as a complete unit for fitting on the Anaesthesia machine.



Flow Range

  • High flow tubes are available in ranges of 0-10, 0-12. 0-15 LPM
  • Low flow tubes are available in ranges of 0-1 LPM
  • Dual scale tubes available for expanded low range reading


Connections

  • Inlet and outlet connections are available as per your choice.
  • Most common are ISO taper with RH outlet, or 6mm Festo.
Read More...
