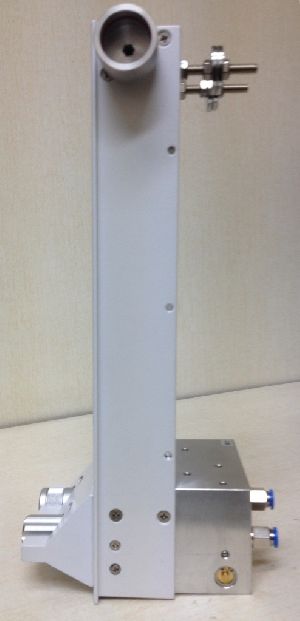

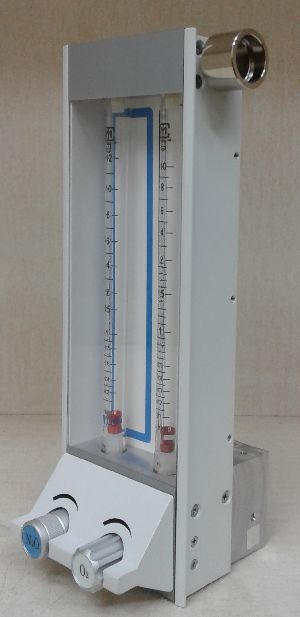

Dual Tube Flowmeter with AHD

Dual Tube Flowmeter with AHD
Business Type Manufacturer, Exporter, Supplier
Oxygen Inlet 6 Mm Festo Connection from Rear Bottom ,(straight)
N2o Inlet 6 Mm Festo Connection from Rear Bottom ,(straight)
Mixed Gas Outlet 6 Mm Festo Connection from Rear Top ,(straight)
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Control Knob Oxygen
Aluminium with Special Profile as per Iso 5358
Control Knob N2o
Aluminium Serrated, Serration Depth <1mm, Knob Dia Lower Than Oxygen Knob Dia
Working Pressure (max)
420 Kpa (both N2o & O2)
Oxygen Tube Range
0.1 – 10 L/min, with Expanded Scale At 0.1 – 1 L/min Graduations in Lpm Unit
N2o Tube Range
0.1– 12 L/min, with Expanded Scale At 0.1 – 1 L/min Graduations in Lpm Unit
Metering Tube
Borosilicate Glass.
Float
Aluminium-is-6063,Anodised Red –for O2& N2o
Accuracy (o2& N2o)
As per Iso-5358
Tube Length (o2& N2o)
220 Mm
Markings/identification
Float Mark On Tubes & other Markings as per Iso 5358
Mounting
Back Bar Mounting, as per Drawing
Housing
Aluminum Frame, Acrylic Front, Background On White Acrylic Sheet.
Material of Construction
Brass-is-319 Natural Colour/aluminium Is-6063 Anodized Natural, O Rings & Washer Epdm.
Tube Fitting Arrangement
Left-n2o, Right –o2
Hypoxia Unit
Geared Type Fitted with the Frame.
N2o Cutoff
Built-in Fitted At Back
Oxygen / N2o Ratio
30 + 5% of O2 At all Settings After N2o Flow Opening.
Labels for Control Knob-o2/n2o
O2-black On White Back Ground/n2o-white On Blue Back Ground
Compliance To
Iso-5358, Rohs
Download

Function

The Flow Head incorporates the following Functions

  • Gas indexed pneumatic inlet ports
  • N20 gas flow cut off in the event of oxygen failure
  • Flow control needle valves
  • N20/O2 flow ratio hypoxic mixture prevention proportioning system
  • Color coded, marked specific labels for flow tubes and flow control valves
  • Gas mixing chamber, mixed gas outlet





GENERAL OPERATION

The Flow Head integrates O2 and N20.

The 02 Air and N20 needle valves gas supply pressure is externally regulated to 400Kpai10Kpa as per standard.

The N20 channel incorporates a pressure cut-oft valve. The 02 supply pressure in the circuit controls the output pressure of the pressure cut-off valve. Under all conditions of operation, the N20 flow shall reach zero before the 02 flow. In this flow head the N20 pressure switch shall cut off the flow of N20 before the 02 pressure drops below 50:15Kpa.



PERFORMANCE STANDARDS

Standard flow conditions defined at 20°C, 101 .3Kpa, (760mmHg) Conforms to ISO 5358 requirements.

Flow Tubes

  •  Flow Tubes are calibrated for discharge into an ambient atmosphere of 101 .3Kpa at an operating temperature of 20°C.
  • Each flow tube shall be calibrated to accuracy of 110% of reading, or better.
  • Flow tubes withstand 690Kpa internal pressure without breaking.

Flow Control Valves

  • Anti-clockwise rotation shall cause an increase inflow.
  • Flow control knob are color coded and touch coded. Smooth and precise rotation ensures accurate flow setting



PRESSURE CUT-OFF VALVE

  • N20 regulated pressure shall drop with falling of 02 supply pressure and shall prograssively reduce flow of this gas while
  • maintaining the proportion of 02 (22% min.) until O2 pressure falls to 50i15Kpa at which point the supply of N20 shall be cut off.
  • The only means of restoring N20 flow after 02 supply failure (O2 pressure below 50i15Kpa) shall be the restoration of 02 pressure.

ASSEMBLY

Leakage from atmosphere shall not exceed 108ml/min. when a vacuum of 80cm H20 is applied to all internal.

MATERIALS

  • All wetted material are compatible with all gases used and all anaesthetic agents.
  • Equipment compiles with HoHS requirements.
Read More...
